ER-030478

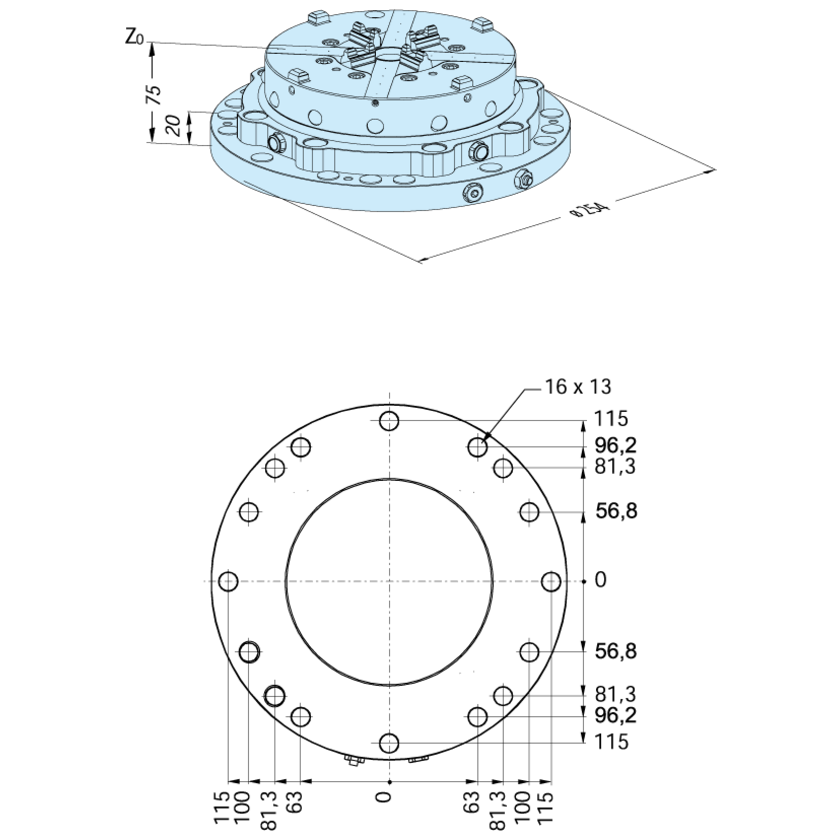

ProductionChuck 210 Combi

To the watch list

Version

Chuck for strong machining forces in chip-cutting operations. PC 210 with integrated PowerChuck P.

Connections

Laterally or from below with two lines.

Operation

With air gun, laterally. With control unit, through
the two connections laterally or from below.

Application

On milling machines, lathes, grinding machines and EDM centers. To clamp pallets PC 210, pallets ø 148, ø 115, ITS holder ø 72 and 50 C.

Product Labels
