ER-150892

VPC Chuck 96

without base plate

To the watch list

Version

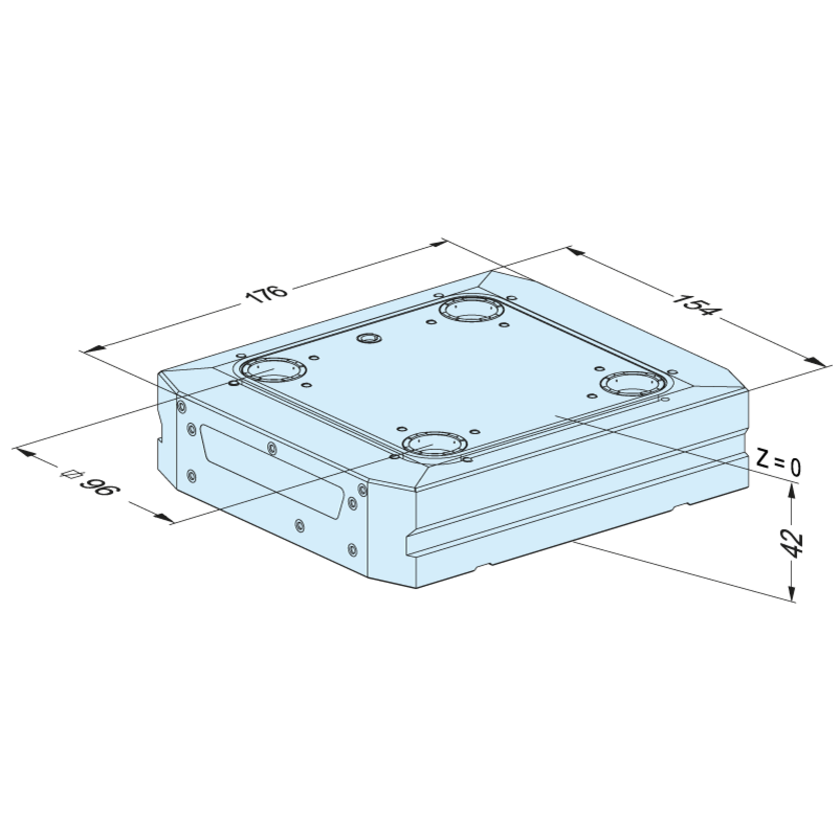

Automatable chuck with a 96mm pitch. Compact design of L 176 x W 154 x H 42 mm. Without base plate.

Connections

Laterally and from below: to open, reclamp and clean / presence check.

Application

To accommodate workpiece holders, pallets and fixtures which have been prepared with a pitch of 96mm and VPC chucking spigots 96.

To be fitted

Directly onto the machine table, base plates and pallets with lateral brackets, or to be fitted from below with 6xM8 bolts (attachment material not included in the package supplied).

Product Labels

Download
